Code: POA-WEB199

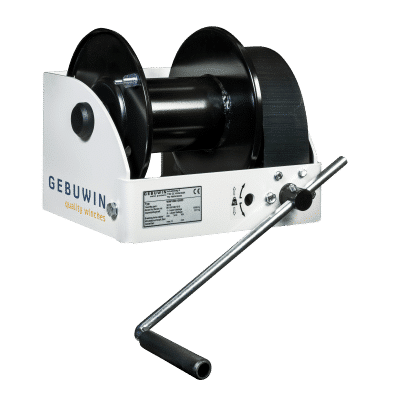

This small worm gear winch has, as the name implies, a worm gear transmission. This type of transmission, in combination with the load-pressure brake, ensures that this winch is a very safe winch. In addition, the small worm gear winch is easy to use and can be mounted in any position. The winch also has space for a large cable storage up to 120 meters.
In short, a very safe and reliable winch that is easy to use.
Specifications
- winch suitable for lifting and pulling in compliance with EN13157
- static safety factor 4
- load pressure brake with double ratchet system for safe stable hold of the load in any position
- cable outlet upwards, downwards or at rear
- adjustable crank
- suitable for wall and (optional) floor mounting
- 1 layer of paint
Technical specifications
| Capacity 1st layer | 250 kg (551 lb) |
| Capacity 4th layer | 179 kg (395 lb) |
| Capacity top layer | 92 kg (203 lb) |
| Rope diameter-Ø | 4 mm (0.16 in) |
| MBL of cable | 9 kN |
| Rope storage 1st layer | 3.6 meter (12 ft) |
| Rope storage 4th layer | 18.7 meter (61 ft) |
| Rope storage top layer | 104 meter (341 ft) |
| Lifting speed | 1 m/min (3 ft/min) |
| Crank effort at full load | 5 kg (11 lb) |
| Weight (without rope) | 10 kg (22 lb) |
| Article number | 77281100 |
| Type name | WW250 |
Also available in 500/1000/1500 kg.
Price on Application
*Some products may require a longer delivery time
